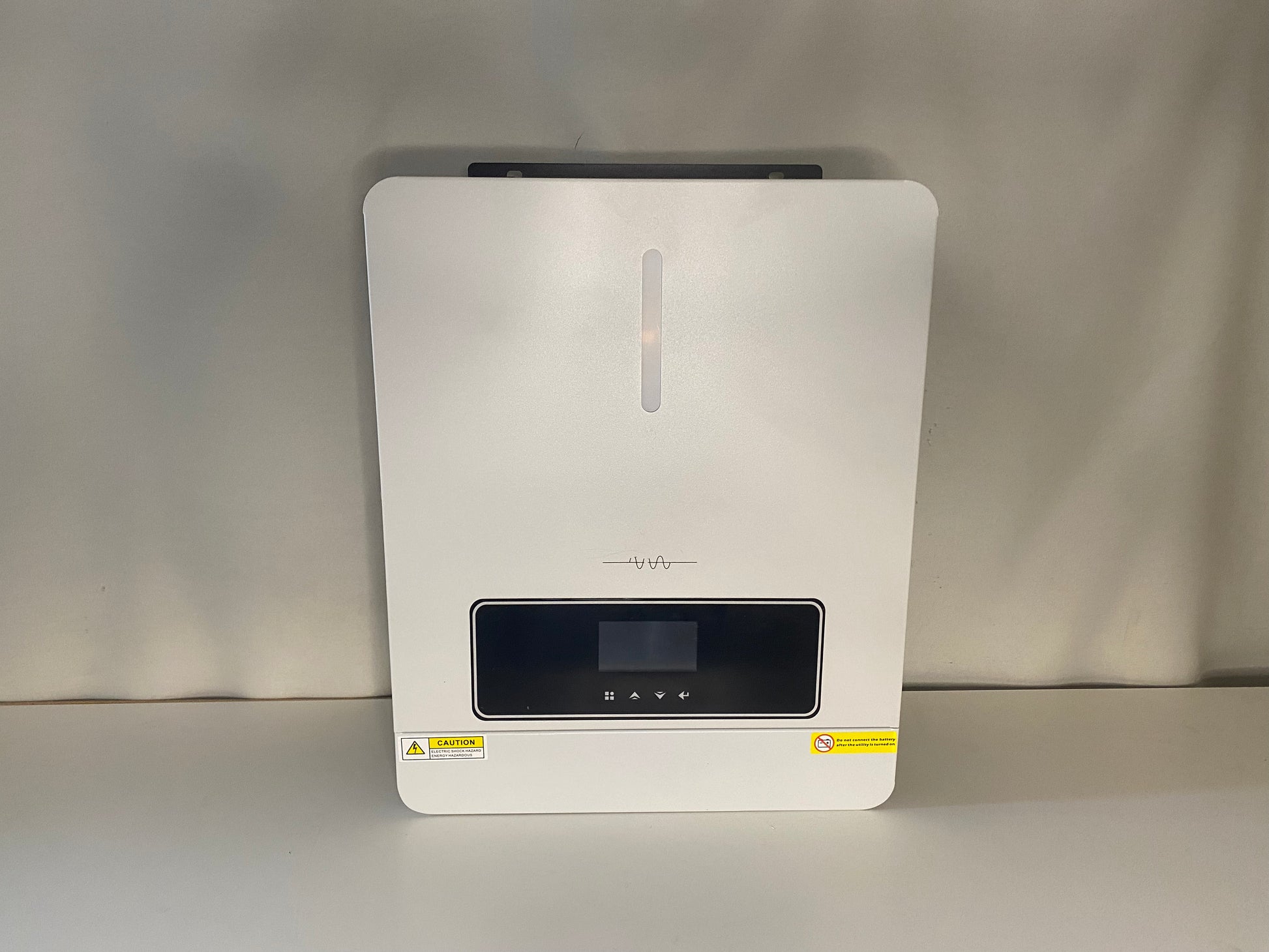

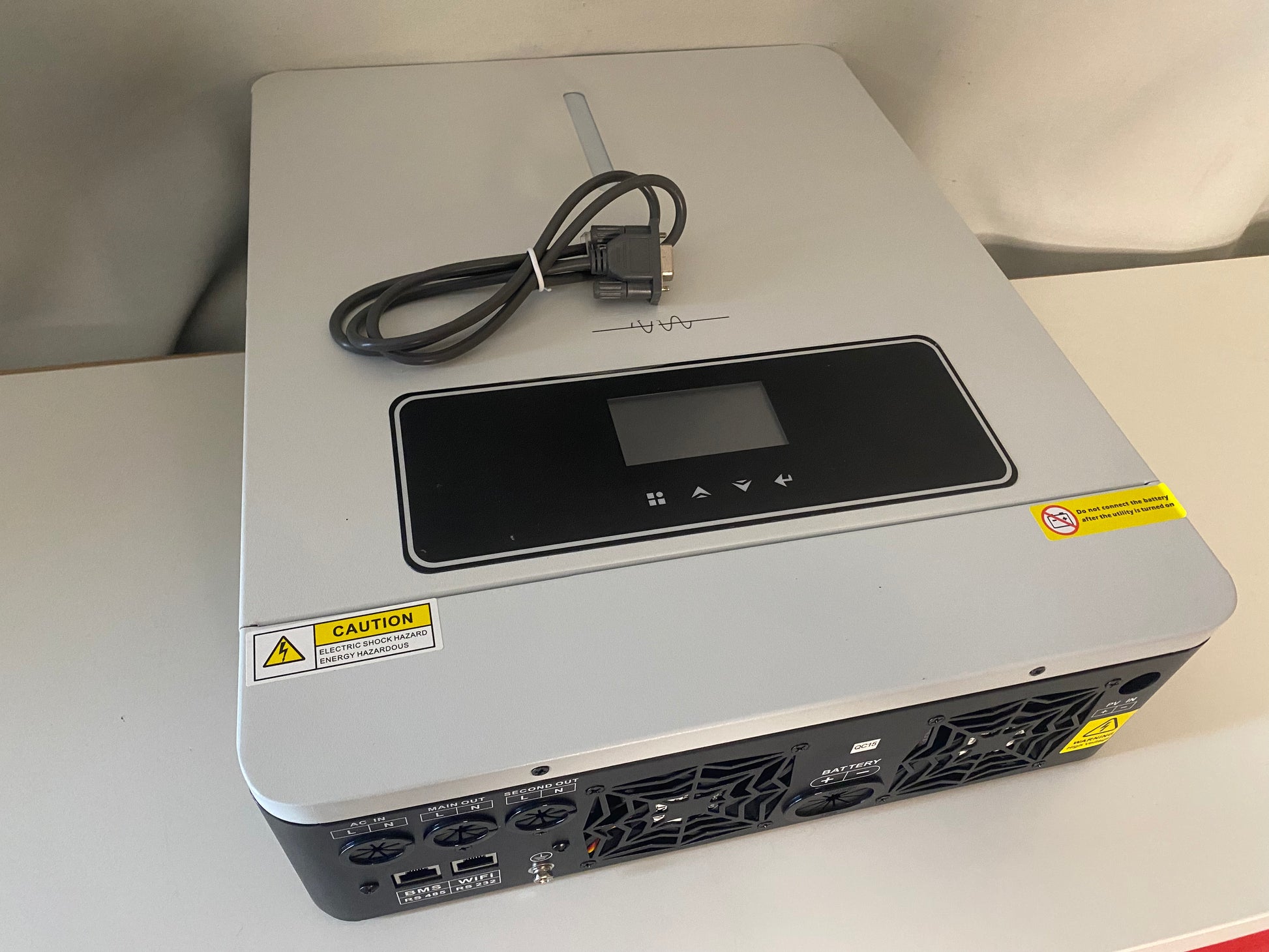

Hybrid solar inverter για σύστημα 48V ή 52V

Δωρεάν μεταφορικά στο κέντρο της Αθήνας.

Τεχνικά χαρακτηριστικά για τον 6200W inverter:

Type: Hybrid Solar Inverter
Model: AGH-6.2KW-PRO
Color: White
Specification
Phase: 1-phase
Maximum PV Input Power: 6500W
Rated Output Power: 6200W/6200VA
Maximum Solar Charging Current: 120A
Communication Port: WiFi
Support Parallel: No

Grid-tie Operation:
PV Input (DC):
Nominal DC Voltage/Maximum DC Voltage: 360V DC/500V DC
Start-up Voltage/Initial Feeding Voltage: 90V DC/120V DC
MPPT Voltage Range: 90V DC - 450V DC
Number of MPPT Trackers/Maximum Input Current: 1/23A
Grid Output (AC):
Nominal Output Voltage: 220/230/240VAC
Output Voltage Range: 195.5 - 253V AC
Nominal Output Current: 27.0A
Power Factor: >0.99
Feed-in Grid Frequency Range: 49 - 51±1Hz

Efficiency:
Max Conversion Efficiency (Solar to AC): 98%

Two Load Output Power (V2.0):
Full Load: 6200W
Maximum Main Load: 6200W
Max Second Load(battery mode): 2067W
Main Load Cut-Off Voltage: 44V DC
Main Load Return Voltage: 52V DC

Off-grid Operation:
AC Input:
AC Start-up Voltage/Auto Restart Voltage: 120-140V AC/180V AC
Acceptable Input Voltage Range: 90-280V AC or 170-280V AC
Maximum AC Input Current: 40A
Nominal Operating Frequency: 50/60Hz
Surge Power: 12400W

Battery Mode Output (AC):
Nominal Output Voltage: 220/230/240V AC
Output Waveform: Pure sine wave
Efficiency (DC to AC): 94%

Battery & Charger:
Nominal DC Voltage: 48V DC
Maximum Solar Charging Current: 120A
Maximum AC Charging Current: 100A

Operating Temperature: -10 - 50 Celsius

Weight & Size:

Product Weight: 9kg
Package Weight: 10kg
Product Size(L x W x H): 42.3x33.4x11cm
Package Size(L x W x H): 51x42x19cm

Package Contents:

1 x Hybrid Solar Inverter
1 x WiFi Plug
1 x User Manual

Τεχνικά χαρακτηριστικά για τον 10200W inverter:

Phase: 1-Phase
Maximum PV Input Power: 10200W
Rated Output Power: 10200W/10200VA
Maximum Solar Charging Current: 160A
Parallel Function: No

Grid-tie Operation:
PV Input (DC):
Nominal DC Voltage/Maximum DC Voltage: 360V DC/500V DC
Start-up Voltage/Initial Feeding Voltage: 90V DC/120V DC
MPPT Voltage Range: 90V DC - 450V DC
Number of MPPT/Max Input Current: 1/27A
Grid Output (AC):
Nominal Output Voltage: 220/230/240V AC
Output Voltage Range: 195 - 253V AC
Nominal Output Current: 44.3A
Power Factor: >0.99
Feed-in Grid Frequency Range: 49 - 51±1Hz

Efficiency:
Max Conversion Efficiency (DC/AC): 98%

Two Load Output Power:
Full Load: 10200W
Maximum Main Load: 10200W
Max Second Load (battery mode): 3400W
Main Load Cut-Off Voltage: 44V DC
Main Load Return Voltage: 54V DC

Off-grid Operation:
AC Input:
AC Start-up Voltage/Auto Restart Voltage: 120-140V AC/180V AC
Acceptable Input Voltage Range: 90-280V AC or 170-280V AC
Maximum AC Input Current: 50A
Nominal operating frequency: 50/60Hz
Surge Power: 20400W
PV Input (DC):
Maximum DC Voltage: 500V DC
MPPT Voltage Range: 90V DC - 450V DC
MPPT/Max Input Current: 1/27A

Battery Mode Output (AC):
Nominal Output Voltage: 220/230/240V AC
Output Waveform: Pure sine wave
Efficiency (DC to AC): 94%

Battery&Charger:
Nominal DC Voltage: 48V DC
Maximum Solar Charging Current: 160A
Maximum AC Charging Current: 140A

Communication Port: RS232/WiFi/Remove LCD/GPRS
Operating Temperature: -10 - 50 Celsius

Weight & Size:
Package Weight: 15kg
Package Size(L x W x H): 59x47x21cm

Package Contents:
1 x Hybrid Solar Inverter
1 x User Manual
